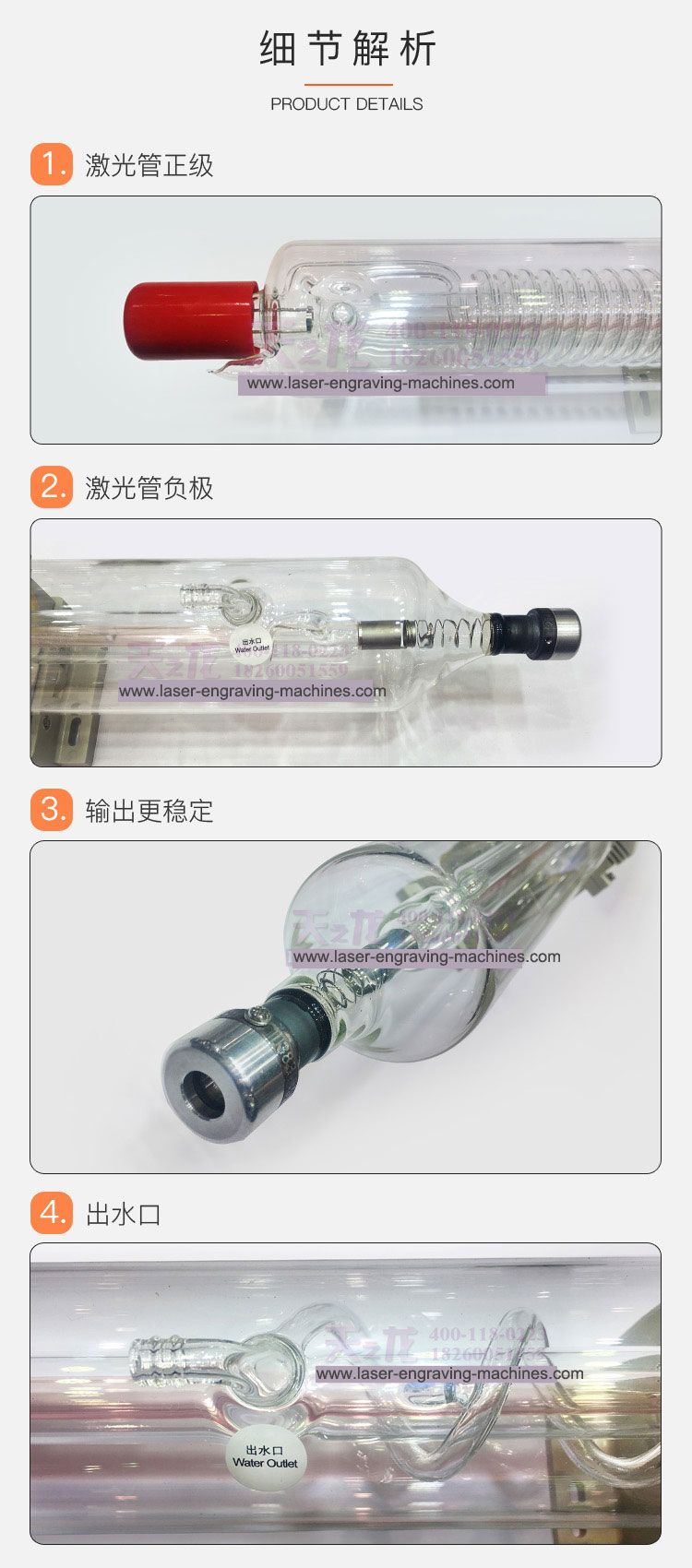

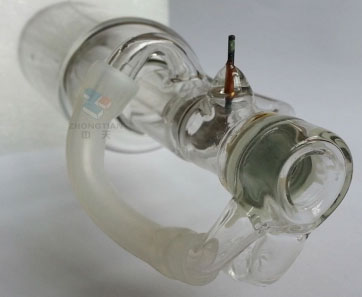

CO2 laser tube
| Model | W1 | W2 | W4 | W6 | W8 | V2 |
| Rated power | 75W | 90W | 100W | 130W | 150W | 90W |
| maximum power | 90W | 100W | 130W | 160W | 180W | 100W |
| Len (mm) | 1070 | 1210 | 1420 | 1680 | 1870 | 1210 |
| pipe diameter(mm) | 80 | 80 | 80 | 80 | 90 | 80 |
| Gross weight(KG) | 4.7 | 5 | 7.5 | 8.5 | 9.7 | 5 |
| paper size (cm) | 122*24*24 | 135*24*24 | 155*39*39 | 181*39*39 | 202*39*39 | 135*24*24 |
| woodex box size | 125*27*27 | 138*27*27 | 158*42*42 | 182*42*42 | 203*46*46 | 138*27*27 |
| Catalyzer | yes | yes | yes | yes | yes | yes |
| Life(H) | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 |
| Warranty (Month) | 18 | 18 | 18 | 18 | 18 | 18 |
.
.
