1. Multi-function processing equipment: A multi-functional laser leather cutting machine that combines drawing and
cutting to meet the various processing needs of the garment industry and is user-friendly.
2. For large-format processing: automatic laser cutting machine using automatic stainless steel crawler-type work
platform, in the 1300X2500 mm processing plane can cut any graphics, processing speed, cutting precision.
3. Automatic laser cutting machine for wood is equipped with automatic feeding device: industrial fabric cutting machine
with high precision, save time, provide production efficiency, with automatic feeding device, automatic loading and
unloading, greatly saving labor costs of the laser cutting machine for leather.
4. High-speed data transfer: USB2.0 interface, hot junction heat transfer, motherboard large-capacity storage space, can
store up to 128 files, 128 batch production of different products.
| Laser Power | 60 W / 80W / 100W / 130W / 150W Optional |
|---|---|

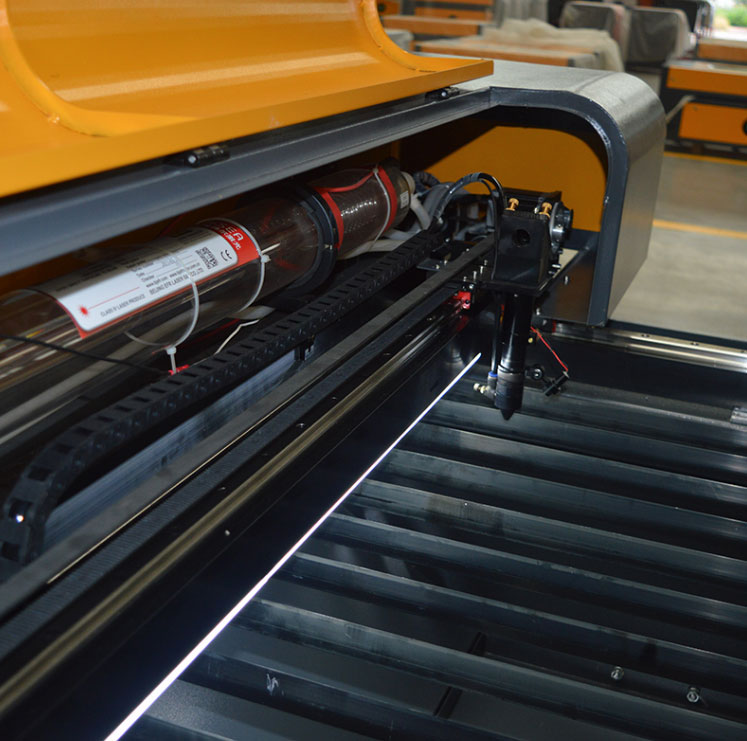

| Laser type | Sealed CO2 laser tube |
| Working area | 130x250 cm |
| Work platform | blade platform |
| Minimum character | 1x1 mm |
| positioning accuracy | <0.01mm |
| Resolving | 1000 dpi |
| Marking depth | 0-0.3mm |
| Engraving speed | 0-500mm/s |
| Cutting speed | 0-50mm/s |
| Cutting thickness | 0-20 mm (Depends on the material) |
| 256 color layer output | Yes |
| Power Supply | 110/220V ± 10% /,50/60HZ 0.5KW |
| Cooling way | Water cooling |
| Water protection | Yes |
| Communications | USB |
| Graphics File Types Accepted | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |

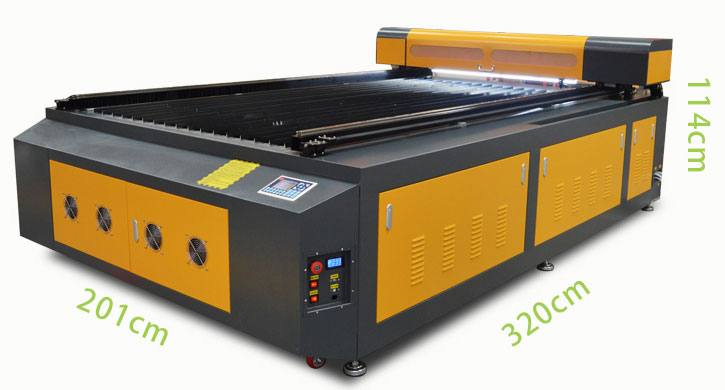

| product size | 320x201x104 cm |
| operating system | Windows xp/7/8/10 |
| Packing size | 330x215x130 cm |
| Packing | plywood wooden packaging |

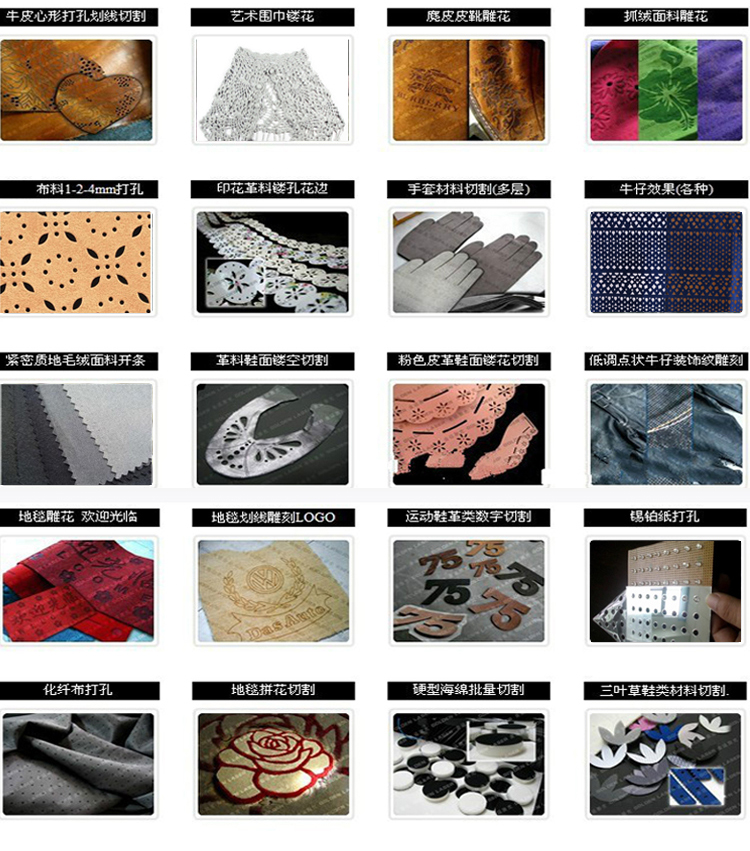

Application Materials:
Non-metal materials such as acrylic, double color board, plexiglas,common glass, bamboo and wood, rubber, marble,
granite and tiles, leather cloth car mat,clothes, acrylic, textile, wool,plastic,MDF, ABS, plastic, clothing, denim
fabric, jeans, bra, underwear, bags,shoes, bathing suit, bath towel, pillow cover, arts and crafts, and all other
nonmetal materials.
