CO2 Laser offers the most cost-effective solution in laser marking and engraving technology. These compact units
commonly replace other marking technologies such as ink jet, dot peen and labeling due to the CO2 laser¡¯s ability to
achieve high-speed marking while maintaining mark quality. These lasers provide non-contrast marking in plastics as well
as ink removal for date coding.
CO2-Series CO2 laser marking systems provide a galvo-steered beam designed for marking. The CO2-Series laser marking
systems are excellent for marking substrates like wood, glass, Plexiglas, quartz, ceramics, fabrics, and other organic
materials.CO2 laser systems can be used to mark 2d barcodes, 2d data matrix, logos, or any sequence of characters and
numbers on your parts and products. Marking data can be input manually, bar code scanned, or downloaded from your
mainframe computer or network system.
Industrial ApplicationsWidely engraving on non-metal and some of the metal materials. Such as Food and Drink Packaging,
Medicine Packaging, Structure and Ceramic, Clothing Accessories,Leather, Textile Cutting, Crafts and Gifts ,
Rubber,Electronic Components, Nameplate, stamps made of rubber etc.
| Laser Type | Repetition rate: 20KHz, 10.06 μm wavelength |
|---|---|
| Beam quality | m2 <1.5 |
| Laser Power | 15W / 30W Optional |
| 11x11 cm (20x20 cm,30x30 cm Optional) | |
| Minimum line width | 30μm |
| Minimum character | 0.4mm |
| Marking depth | 0-0.3mm |
| Engraving speed | 0-7000mm/s |
| Minimum line width | 0.1mm |
| Repeatability accuracy | ±0.01mm |
| Power Supply | 110/220V ± 10% /,50/60HZ |
| Cooling way | Air cooling |
| Communications | USB |
| Graphics File Types Accepted | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
| operating system | Windows xp/7/8/10 |
| Packing | plywood wooden packaging |

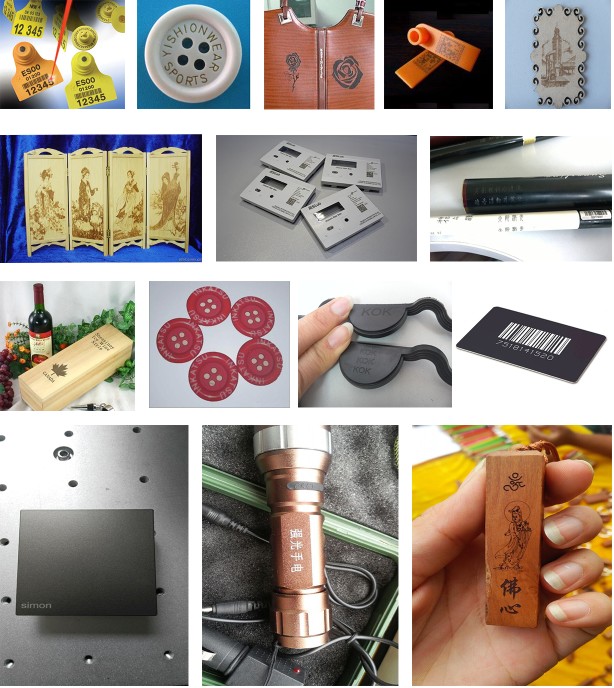

Application:
It is widely used in seal/stamp engraving, electronic, craft and gift, garment, leather, toy, computerized embroidery, packing and printing, shoemaking, furniture, advertising industries ect.
Suitable to rubber, plastic, crystal, Plexiglas, acrylics, bamboo and wooden, marble, granite, ceramtic, glass, china, paper, garment, jade article, glass, shell and other non-metal materials.
