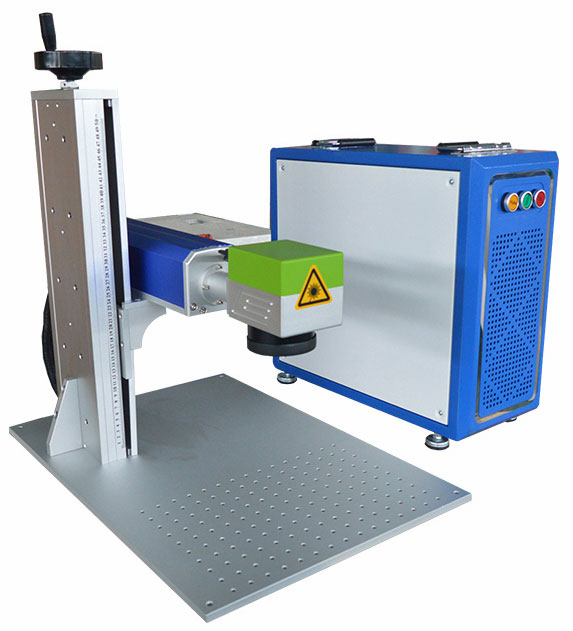

It is the most popular marking machine in recent years, which is especially suitable for metal materials marking. It has
small size, good beam quality, maintenance-free, long service life, high electro-optic conversion efficiency, etc.
Product Advantage.
Perfect Marking Effect, Can mark precise design on tiny surface ,High Electro-optic Conversion Efficiency
Little energy coupling loss, cost saving, long service life, maintenance-free within 100,000 hours
1. Economic configuration, with good cost performance. Uniform optical power density and stable output power to meet the
application demand of the mainstream market.

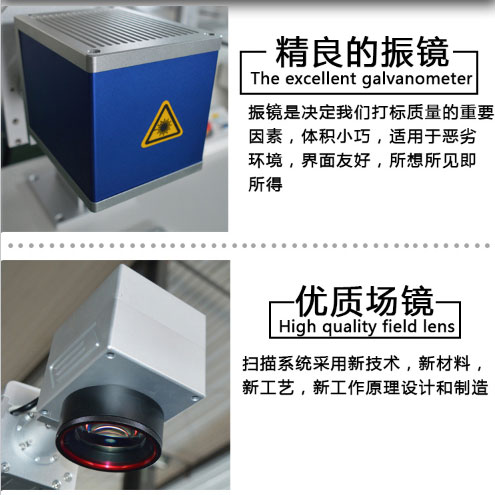

2. High speed digital galvo scanner: small size, high speed and excellent stability; the performance reaches the
international advanced level.

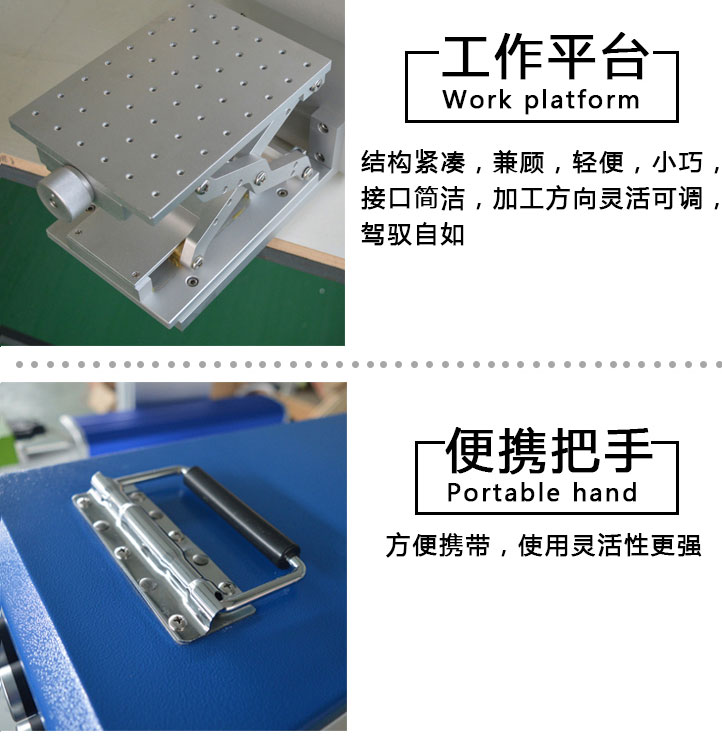

3. Modular design of control console, marking head and working platform, could be mixed and matched freely to meet
different demands, could either work on assembly line marking or stationary marking.
4. Multi-degree adjustment extremely ensures it can mark on different surface of different products.
| Laser Type | Repetition rate: 20-80KHz, 1064 nm wavelength |
|---|---|
| Beam quality | m2 <1.5 |
| Laser Power | 10 W / 20W / 30W / 50W Optional |
| Working area | 11x11 cm |
| Minimum line width | 30μm |
| Minimum character | 0.15mm |
| Marking depth | 0-0.2mm |
| Engraving speed | 0-12000mm/s |
| Minimum line width | 0.01mm |
| Repeatability accuracy | ±0.001mm |
| Life of Laser module | 100000 hours |
| Power Supply | 110/220V ± 10% /,50/60HZ 0.5KW |
| Cooling way | Air cooling |
| Communications | USB |
| Graphics File Types Accepted | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
| operating system | Windows xp/7/8/10 |
| Packing | plywood wooden packaging |

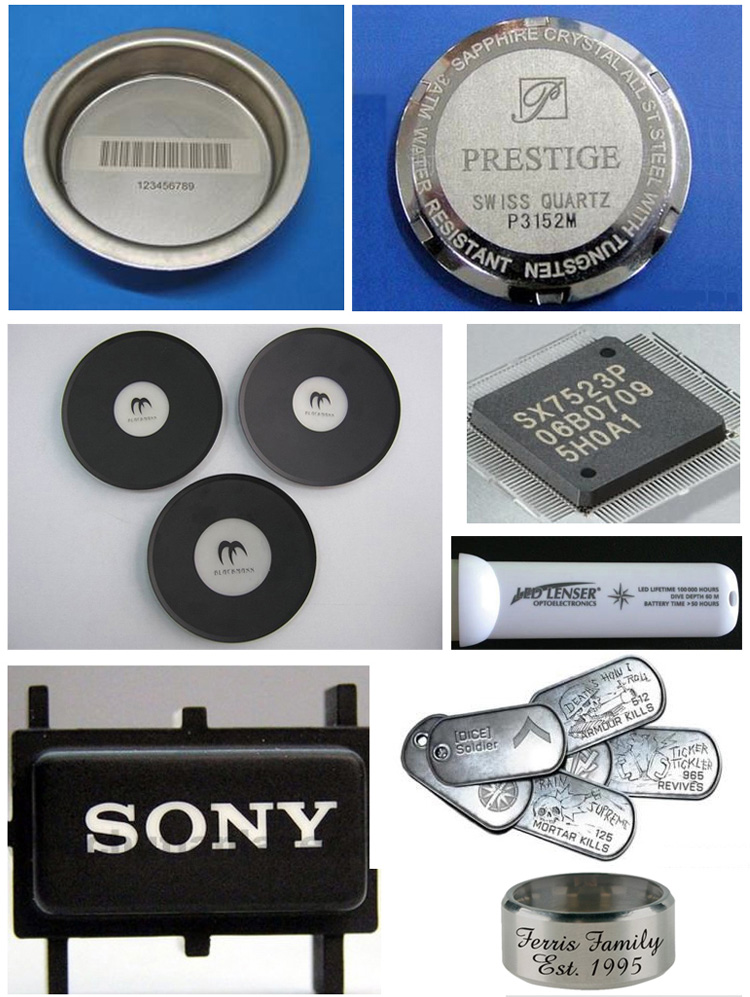

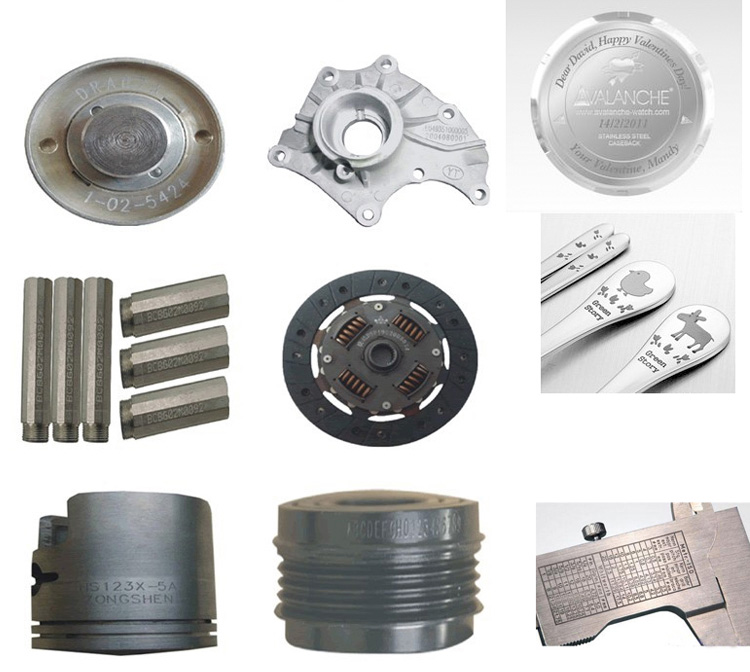

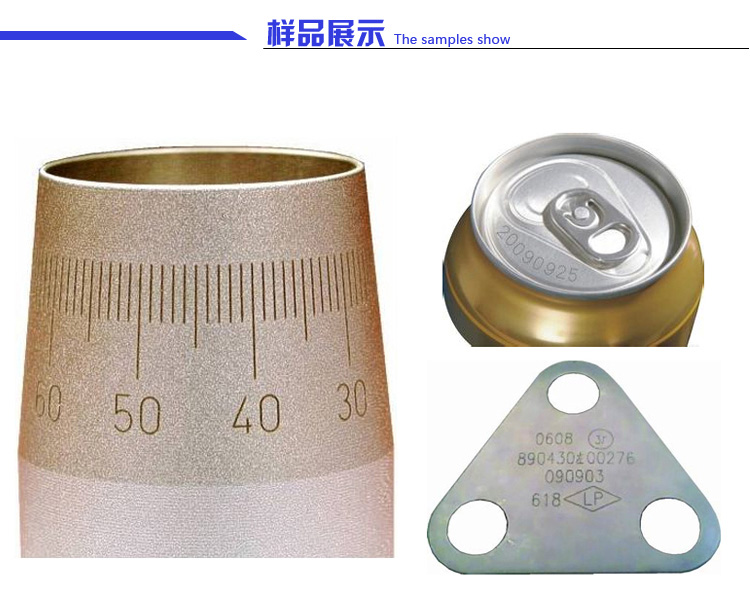

Application:
It is widely used in seal/stamp engraving, electronic, craft and gift, garment, leather, toy, computerized embroidery, packing and printing, shoemaking, furniture, advertising industries ect.
Suitable to rubber, plastic, crystal, Plexiglas, acrylics, bamboo and wooden, marble, granite, ceramtic, glass, china, paper, garment, jade article, glass, shell and other non-metal materials.
