Fast speed than handle making
Cutting quality good together with high accuracy. Computer control easy for complex design.
Self-design keeps same space from up to down as well as straight with surface. Small laser dot keeps thinner cutting
lines.
Adjustable for working speed and laser power, change setting up easily.
1. Taiwan PMI square guide rails for XYZ-axis

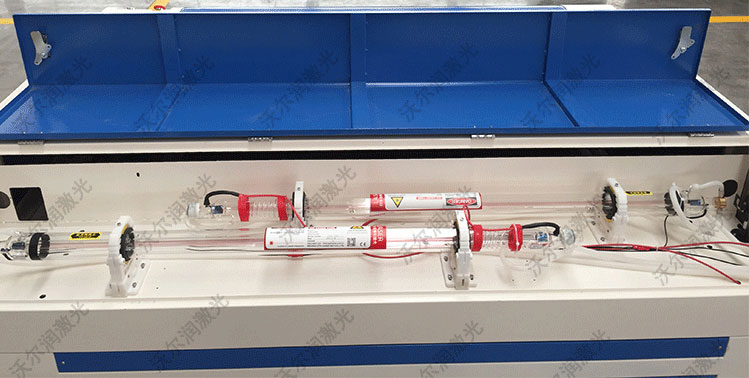

2. sealed CO2 laser tube with 60W,80W,100W,130W,150W, we use famous RECI brand laser tube made in Beijing.
3. Leadshine stepper motor and driver
4.belt transmission, also can be optional ball screw transmission, if you need, we can produce it for you

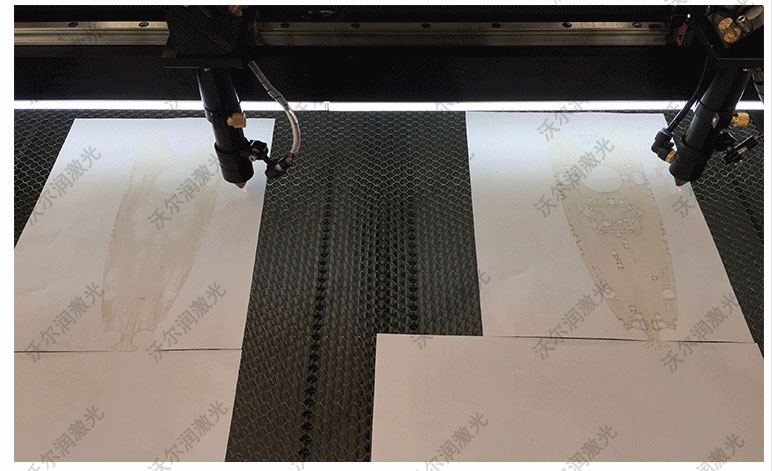

5.laser head with red light positioning function
6. exhaust fan and air pump, so it can adsorb the smoke when you engrave and cut the materials
7.water chiller, it can recycle the water and then cool the laser tube.
8.Ruida or Leetro control system in English, with USB interface
9. knife table or honeycomb table, it's up to you, if you want to cut cloth or fabric, it's best for you to choose honeycomb table
10. We adopt RECI CO2 Quality Laser Tube with Associated laser power supply. Life-span is 10,000hours' working time, 300days warrantited.
| Laser Power | 60 W / 80W / 100W / 130W / 150W Optional |
|---|---|
| Laser type | Sealed CO2 laser tube |
| Working area | 160x90 cm |
| Work platform | blade platform |
| Minimum character | 1x1 mm |
| positioning accuracy | <0.01mm |
| Resolving | 1000 dpi |
| Marking depth | 0-0.3mm |
| Engraving speed | 0-1000mm/s |
| Cutting speed | 0-300mm/s |
| Cutting thickness | 0-20 mm (Depends on the material) |
| 256 color layer output | Yes |
| Power Supply | 110/220V ± 10% /,50/60HZ 0.5KW |
| Cooling way | Water cooling |
| Water protection | Yes |
| Communications | Ethernet/USB |
| Graphics File Types Accepted | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
| product size | 187x132x110 cm |
| operating system | Windows xp/7/8/10 |
| Packing | plywood wooden packaging |
Application Materials:
Non-metal materials such as acrylic, double color board, plexiglas,common glass, bamboo and wood, rubber, marble,
granite and tiles, leather cloth car mat,clothes, acrylic, textile, wool,plastic,MDF, ABS, plastic, clothing, denim
fabric, jeans, bra, underwear, bags,shoes, bathing suit, bath towel, pillow cover, arts and crafts, and all other
nonmetal materials
