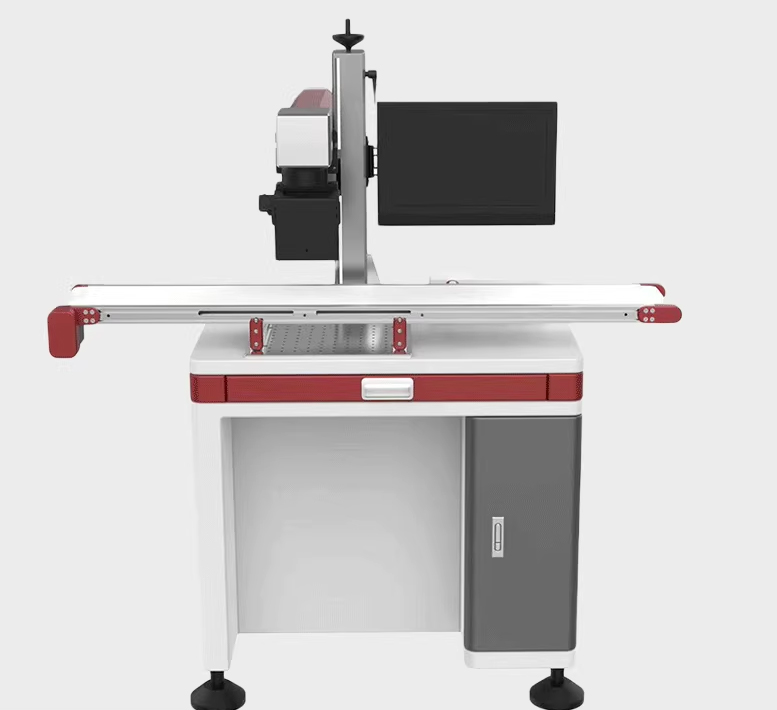

CCD Camera Positioning Machine

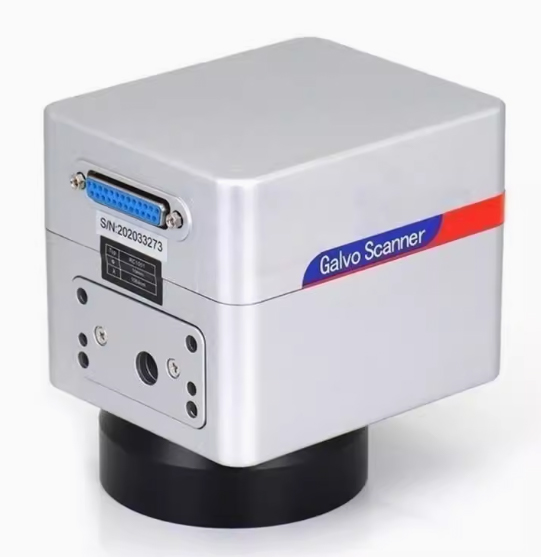

CCD Camera Visual positioning laser marking machine, also known as CCD visual positioning marking machine, mainly for batch irregular marking fixture design and manufacturing difficulties resulting in difficult feeding, poor positioning, slow speed problems, can be realized as long as the laser marking scanning galvanometer within the processing range, you can realize the positioning of the marking; each time, even if the position is not the same position, the processing position is no problem. Applicable to the workload, product positioning difficult, workpiece diversity and complexity such as capacitors, IC cards, small screws, jewelry and so on.
|
|
|
||||||
|
|
|
||||||
Advantages of CCD Camera visual positioning laser marking machine
1、One-key automatic calibration, the laser and visual latitude and longitude relationship.
2, adapt to the automatic positioning mode, only need a photo frame, you can realize the automatic positioning service, individual multiple product marking, a key aberration correction, applicable to high-density places, the vision lens correction.
3、Products at random multi-angle, random number, the camera automatically detects the product marking;
4, longer service life, is ten times the traditional marking machine
5, save customer positioning mold time, can reduce customer production process, improve production efficiency, reduce defective rate, reduce costs.
Working principle:
CCD visual positioning laser marking machine its core function is the CCD visual positioning function, the function can automatically identify the product characteristics for laser marking, to achieve rapid positioning, and then small objects can be marked with high precision, no longer need to use fixtures, the use of CCD visual positioning laser marking machine will not appear leakage or broken light phenomenon, you can mark a number of products at a time, but also for the assembly line of automatic loading, easy to CCD vision laser marking machine using the principle of visual positioning, the first product template development, to determine the shape of the product, saved as a standard template, in the normal processing of the product to be processed to take pictures, by the computer to fast compare the template for comparison and positional positioning, adjustments can be accurately processed on the product. General application in the field of ink and paint, ceramics, plastic products, metal and surface, keyboards and keys.
