Laser Marking Engraving Parts
Laser marking machine is usually classified as fiber, ultraviolet, CO2 carbon dioxide laser marking machine, in addition to some of the optical accessories are different, the organization principle is different, most of the other configurations can usually be divided into the following categories.
|
|
|
||||||
|
|
|
||||||
First, the laser

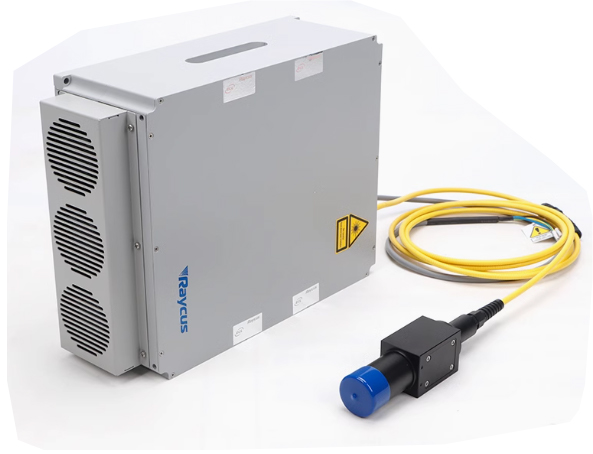

This is the core of the laser marking machine accessories, according to different models, it usually has a lot of series of lasers: fiber, ultraviolet, CO2, YAG, semiconductor and so on. Its output laser mode good service life, is designed to be installed in the marking machine casing.
Second, the laser power supply

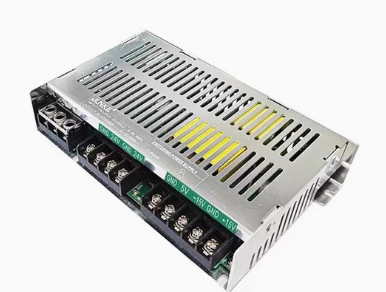

Laser marking machine laser power supply is to provide power for the laser device, its input voltage is AC220V/AC110V alternating current. Installed in the marking machine control box. Fiber laser marking machine structure diagram
Third, the vibrating mirror field mirror scanning system

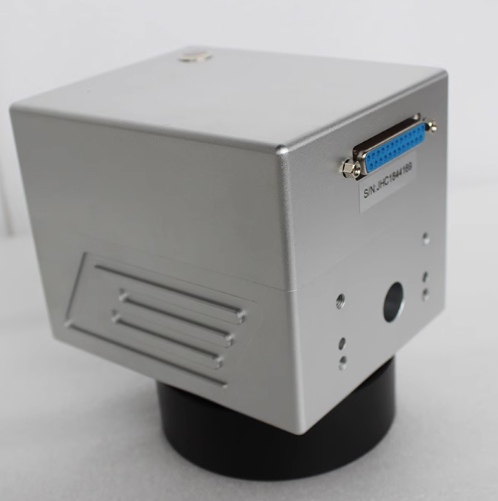

Vibrating mirror scanning system is composed of optical scanner and servo control two parts. Vibration lens composition: by the stator, rotor, detection sensor three parts. The whole system adopts new technology, new materials, new technology, new working principle design and manufacture.
The optical scanner adopts servo motor with dynamic magnetic deflection working mode, the optical scanner is divided into X-direction scanning system and Y-direction scanning system, and each servo motor axis is fixed with laser reflection lens. Each servomotor is controlled by a digital signal from the computer to control its scanning trajectory.
Fourth, the computer control system

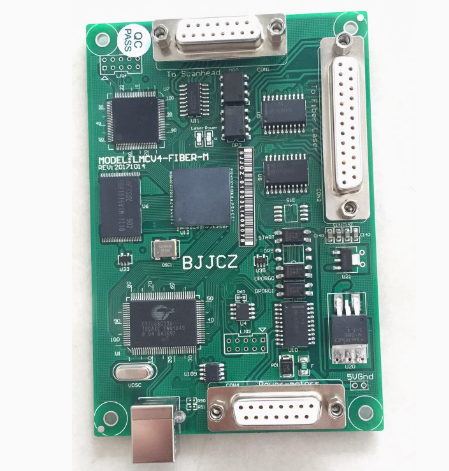

Computer control system is the whole laser marking machine control and command center, but also the carrier of software installation. Through the sound and light modulation system, galvanometer scanning system to complete the coordinated control of the workpiece marking processing.
Fifth, focusing system

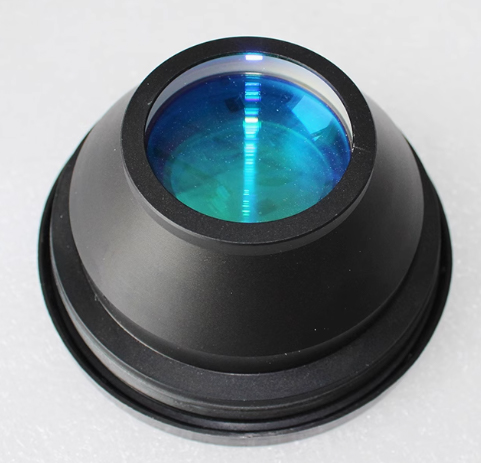

The role of the focusing system is to focus the parallel laser beam at one point. The main use of f-θ lens, different f-θ lens focal length is different, marking effect and range is not the same, fiber laser marking machine imported high-performance focusing system, its standard configuration of the lens focal length f = 160mm, the effective scanning range Φ110mm, the user can according to the need to match the model of the lens.
Six, marking control software
Laser marking machine software is used to control the marking parameters, control the debugging of the application interface, the operation of the marking of all actions.

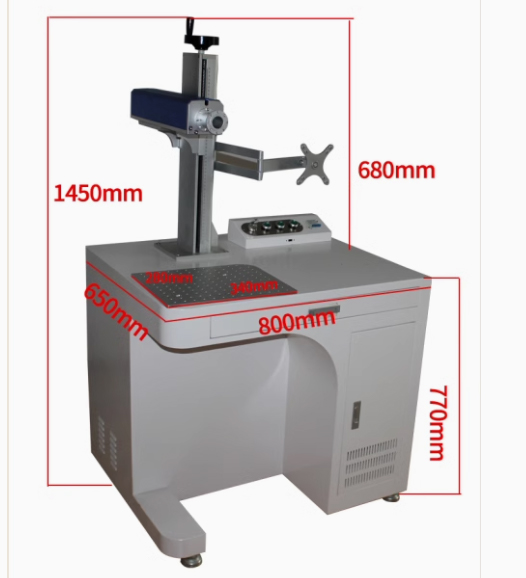

Seven, sheet metal parts model, all the facilities of the model framework
