Technical Index:

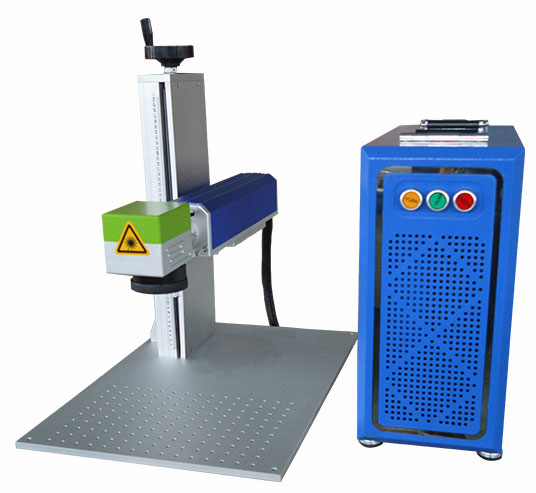

It is the most popular marking machine in recent years, which is especially suitable for metal materials marking. It has
small size, good beam quality, maintenance-free, long service life, high electro-optic conversion efficiency, etc.
Product Advantage.
Perfect Marking Effect, Can mark precise design on tiny surface ,High Electro-optic Conversion Efficiency
Little energy coupling loss, cost saving, long service life, maintenance-free within 100,000 hours
1. Economic configuration, with good cost performance. Uniform optical power density and stable output power to meet the
application demand of the mainstream market.
2. High speed digital galvo scanner: small size, high speed and excellent stability; the performance reaches the
international advanced level.
3. Modular design of control console, marking head and working platform, could be mixed and matched freely to meet
different demands, could either work on assembly line marking or stationary marking.
4. Multi-degree adjustment extremely ensures it can mark on different surface of different products.
| Laser Type |
UV Laser |
| Beam quality | m2 <1.5 |
| Laser Power |
3w, 5w, 10w Optional |
| Minimum line width |
0μm |
| Minimum character |
0.15mm |
| Marking depth |
0-0.3mm |
| Engraving speed |
0-7000mm/s |
| Minimum line width |
0.01mm |
| Repeatability accuracy |
±0.001mm |
| Power Supply |
110/220V ± 10% /,50/60HZ |
| Cooling way |
Air cooling |
| Communications |
USB |
| Graphics File Types Accepted |
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
| operating system |
Windows xp/7/8/10/11 |
| Dimensions |
34x54x88cm |
| Packing |
plywood wooden packaging |
Application:
The fiber laser marking machine can be combined with other assembly line equipment to mark on the line
2D UDI/UID Barcodes
Sequential Serial Numbers
Lot Codes and Date Codes
Medical/Automotive Coding
IC Chip Package Marking
Part Numbering
Surface Annealing/Etching
OCR Code Marking
Alphanumeric Marking
Logos and Schematics
Ablation: (Anodized/Painted/Coated)
Complex graphics/pictures
Paint removal
|
