Technical Index:
Laser power: 50W (OPTIONAL)
Laser Type: CO2 Glass-tube laser
Power supply: AC220V +/- 10%/AC110V+/- 10%, 50Hz

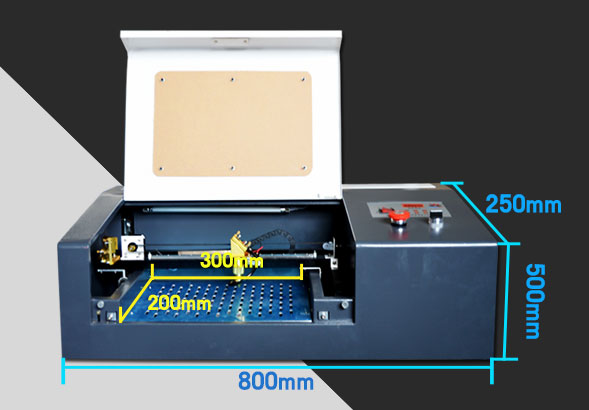

Max. Engraving size: 300*200mm (11.81*7.87")
Engraving speed: 0~350mm/s (0~13.8 in./s)
Cutting speed: 0~35mm/s (0~1.38 in./s)
Min. cutting character: Letter: 1x1mm (0.04*0.04")
Operating Temperature: 5~40 degree Celsius
Resolution Ratio: <1000dpi
System Environment: WINDOWS2000/WINDOWS XP/Vista/Win7
Software Supported: MoshiDRAW software (Both NewlyDraw and NewSea fuction)
Type of Cooling: water-cooling and protection system
Graphic Format Supported: BMP/JPG/JPEG/WMF/EMF/PLT
Motor Type: Stepper Motor
Water-break protection: Yes
Gross Weight: 45kgs
Machine Dimension: 750*450*250mm (29.5*17.7*9.8")
Packing: wooden box package
Packing Dimension: 920*600*380mm (36.2*23.6*14.9")
| Laser Power | 50 W |
|---|---|
| Laser type | Sealed CO2 laser tube |
| Working area | 30x0 cm |
| Work platform | honeycomb platform |
| Minimum character | 1x1 mm |
| positioning accuracy | <0.01mm |
| Resolving | 1000 dpi |
| Marking depth | 0-0.3mm |
| Engraving speed | 0-500mm/s |
| Cutting speed | 0-50mm/s |
| Cutting thickness | 0-20 mm (Depends on the material) |
| 256 color layer output | Yes |
| Power Supply | 110/220V ± 10% /,50/60HZ 0.5KW |
| Cooling way | Water cooling |
| Water protection | Yes |
| Communications | USB |
| Graphics File Types Accepted | PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
| product size | 90x50x27 cm |
| operating system | Windows xp/7/8/10 |
| Packing size | 117x66x36 cm |
| Packing | plywood wooden packaging |
Application:
It is widely used in seal/stamp engraving, electronic, craft and gift, garment, leather, toy, computerized embroidery, packing and printing, shoemaking, furniture, advertising industries ect.
Suitable to rubber, plastic, crystal, Plexiglas, acrylics, bamboo and wooden, marble, granite, ceramtic, glass, china, paper, garment, jade article, glass, shell and other non-metal materials.
