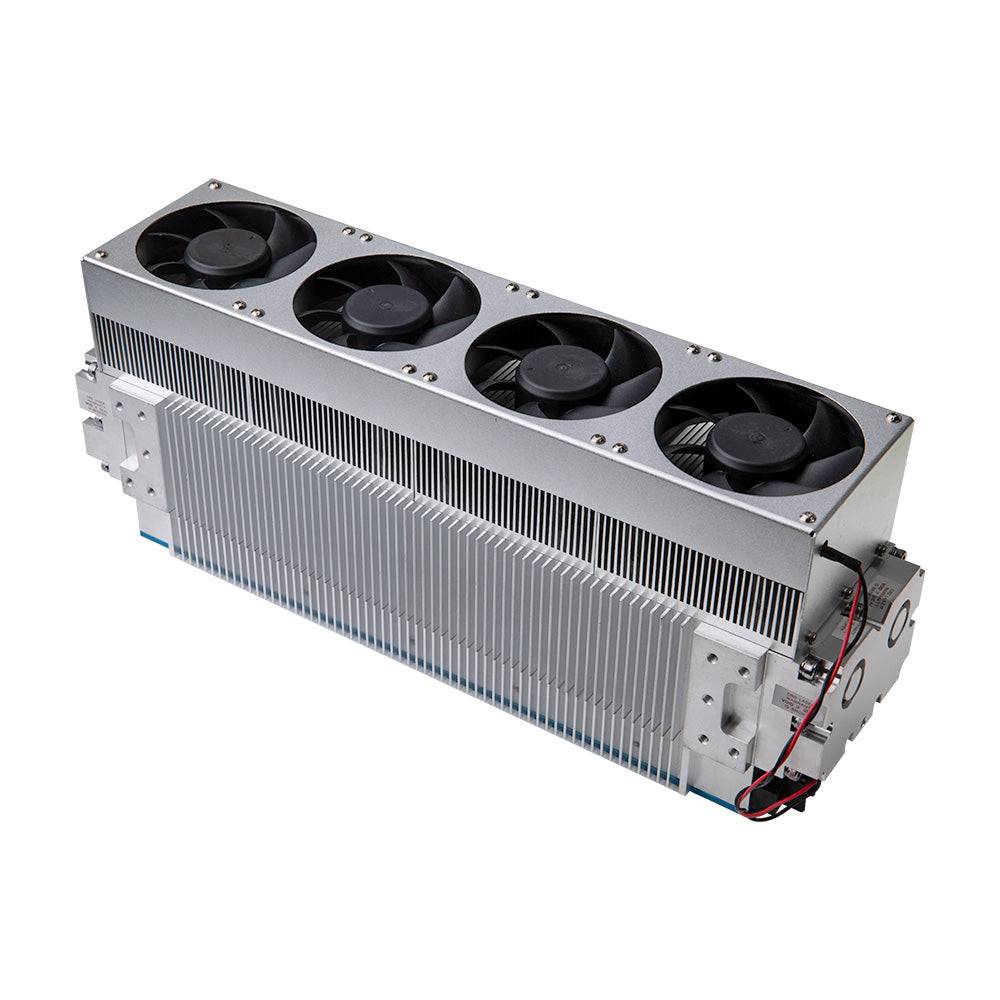

CO2 RF metal tube
Industry-leading compact design with integrated RF power supply Air- and liquid-cooled configurations
High-quality laser processing of a wide range of materials
CR Laser Parameters CR30C / CR40C CR30C Model CR30C Wavelength 10.6 µm Power >30W Power Stability <±5% Mode m2 <1. 2 Beam Diameter
2±0.2mm Angle of Dispersion <7mrad Polarization >100:1,
Horizontal linear polarization Modulation frequency 0-25kHz, 0-100
Electrical input 48VDC, 12. 5A Cooling method Air/water cooled 4L/M
Heat dissipation 500W Dimensions Air-cooled 360 X 93 X 145, water-cooled 360 X 93 X 95 Lifespan 20000 hours (1.5 hours)
93 X 95 Lifetime 20000 hours (inflatable) Warranty 2 years CR40C Model CR40C Wavelength 10.6 µm Power >45W Power Stability <±5% Mode m2
<1. 2 Beam Diameter 2±0.2mm Angle of Dispersion <7mrad Polarization >100:1,
Horizontal linear polarization Modulation frequency 0-25kHz, 0-100
Electrical input 48VDC/10A Cooling method Air/water cooling 4L/M
Heat dissipation 500W Dimensions 357 X 93 X 145 Air-cooled/357 X 93 X 95 Water-cooled
Pulse Width Modulation (PWM): The laser controls the laser power by Pulse Width Modulation (PWM). Low
The voltage range should be 0 to 0.5V (laser off) and the high voltage range should be 3.5V to 5V.
The high voltage range should be 3.5V to 5V (laser on). Pulse Width Modulation or PWM controls the laser power by varying the duty cycle.
Laser power is controlled by varying the duty cycle provided by an external controller.
Controller supplied.
