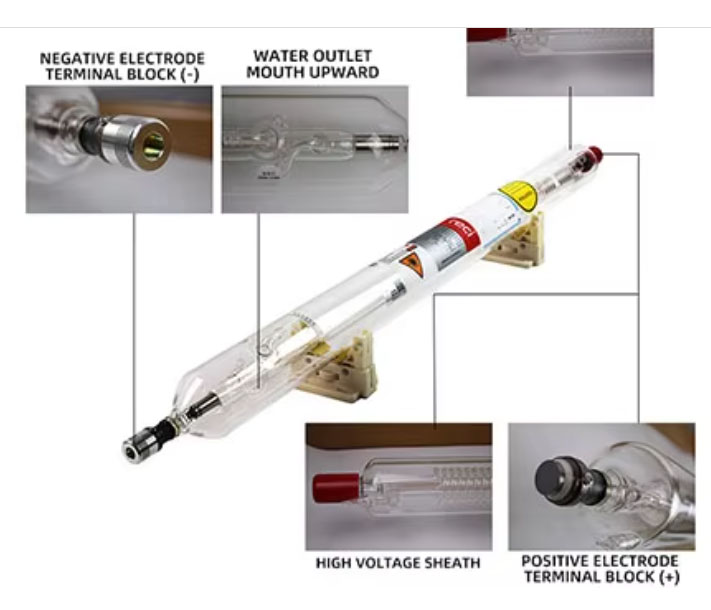

CO2 laser Tube
Reci has upgraded its CO2 glass laser tubes to Generation 3.0. After nearly a decade of development, the CO2 glass laser tube is now in its third generation. The third generation of laser tubes eliminates the adjusting screws on both ends of the laser tube.
Instead, metal parts are manufactured on high-precision CNC machines. A new firing technique is used to connect the metal parts directly to the glass parts. This new technology gives the W series laser tubes a high degree of stability.
| Model | W1 | W2 | W4 | W6 | >W8 | T1 | T2 | T4 | T6 |
| Rated output power(w) | 75 | 90 | 100 | 130 | 150 | 75 | 90 | 100 | 130 |
| Max output power(w) | 90 | 100 | 130 | 160 | 180 | 90 | 100 | 130 | 160 |
| Length(mm) | 1100 | 1250 | 1400 | 1650 | 1850 | 1110 | 1250 | 1400 | 1650 |
| Outer Dia(mm) | 80 | 80 | 80 | 80 | 90 | 65 | 65 | 65 | 65 |
| Catalyst | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Spanlife（h） | 15000 | 15000 | 15000 | 10000 | 10000 | 8000 | 8000 | 8000 | 8000 |
| Warranty(days) | 540 | 540 | 540 | 360 | 360 | 300 | 300 | 300 | 300 |
