Fiber Laser Marking Source

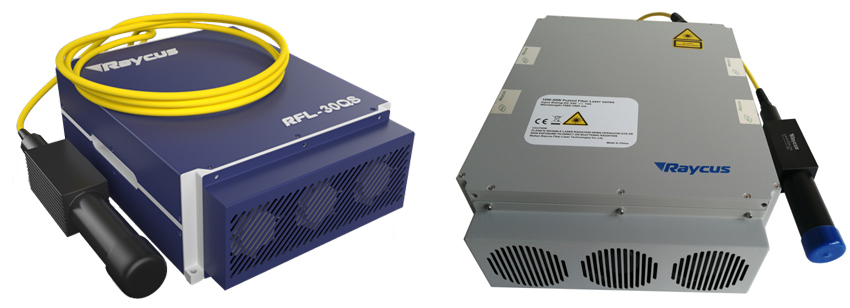

Aycus is the best brand of Q-switched pulsed fiber laser light source in China, and its brand has also spread widely in the world in the past 3-5 years, and its sales should be the world's No.1 in low-power class fiber laser light source. Raycus tuned Q-switched pulsed fiber laser sources in the power range of 20w-100w

Model |
RFL-P20QE |
RFL-P20QS |
RFL-P30QS |
RFL-P30Q |
RFL-P50QB |
RFL-P100Q |
Laser power (w) |
20w |
20w |
30w |
30w |
50w |
100w |
Wavelength |
1064nm |
Repeat Frequency (kHZ) |
30-60 |
30-60 |
40-60 |
30-60 |
50-100 |
20-200 |
Laser beam dia. output |
7+/-1 |
6.5+/-1 |
Pulse width |
110-140 |
110-140 |
130-150 |
110-130 |
120-150 |
50-110 |
Power ajdusting scope(%) |
10~100 |
0-100 |
Dimension L*H*W (mm) |
260*120*340 |
215*95*290 |
260*120*340 |
360*123*390 |
Cooling |
Air cooling |

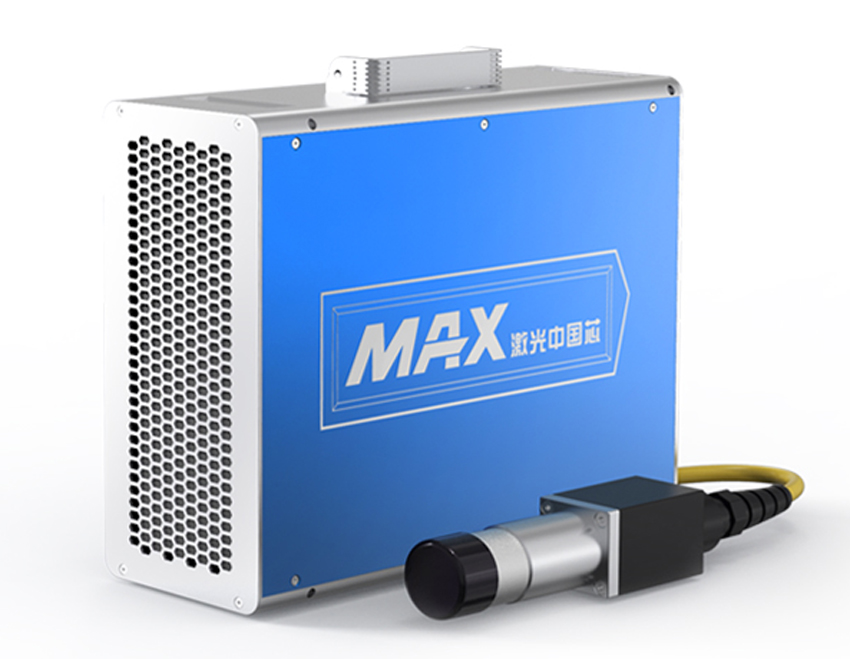

Max also named "Maxphotonics", They provide 5w-70w Q-switched pulse fiber laser source for marking purpose

Model |
MFP-5W |
MFP-10W |
MFP-P20W |
MFP-P30W |
MFP-P50W |
MFP-P100W |
Laser power (w) |
5w |
10w |
20w |
30w |
50w |
100w |
Wavelength |
1064nm |
Repeat Frequency (kHZ) |
10-30 |
22-50 |
20-80 |
30-60 |
33-80 |
50-170 |
Laser beam dia. output |
6~9mm |
Pulse width |
90-110 |
100-140 |
Power ajdusting scope(%) |
10~100 |
0-100 |
Dimension L*W*H (mm) |
355×266×120 |
Cooling |
Air cooling |

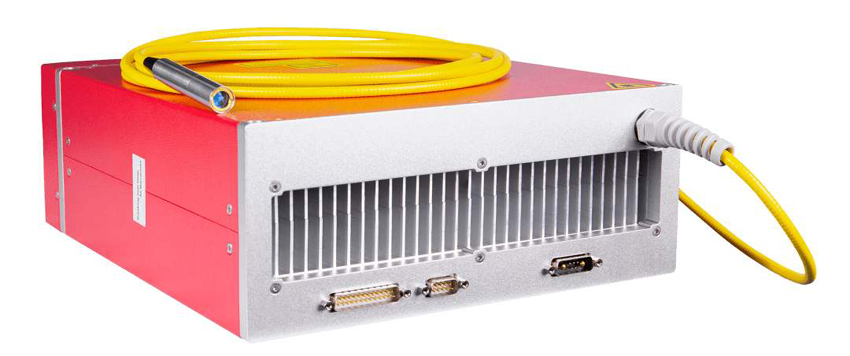

JPT is well known for its MOPA fiber laser sources, which have independently controllable pulse repetition frequency (PRF) and pulse width.

Model |
YDFLP-C-20-M7 |
YDFLP-80-M7 |
YDFLP-100-M7 |
YDFLP-150-M7 |
YDFLP-200-M7 |
Power (w) |
20w |
80w |
100w |
150w |
200w |
Wavelength |
1064nm |
Repeat Frequency (kHZ) |
25-4000kHZ |
53-4000kHZ |
66-4000kHZ |
100-4000kHZ |
133-4000kHZ |
Laser dot dia. output |
5.5~7.5mm |
Pulse width |
2-350 |
2-500 |
Power ajdusting scope(%) |
0-100 |
Dimension L*W*H (mm) |
245*200*65 |
325*260*75 |
350*280*100 |
430*351*133 |
430*351*140 |
Cooling |
Air cooling |
