UV Laser Marking Source
Fully sealed structure, dustproof, moisture-proof
Self-purification in the cavity, longer service life
Compact size, save installation space
Products

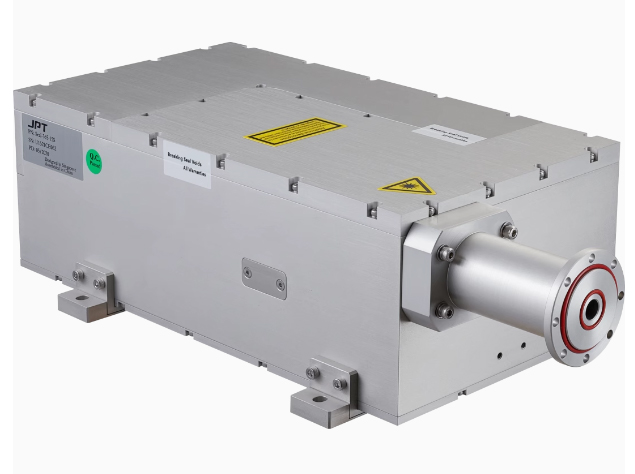

The high power UV series in the Seal family consists of 10W narrow pulse width UV and 15W narrow pulse width UV. The output lasers of this series have excellent beam quality (M2 < 1.2) and perfect spot characteristics (spot ellipticity > 90%). The whole machine adopts integrated structure design, the optical circuit and external drive circuit are combined, which makes this series of products have strong anti-interference ability.
Optimized and upgraded fully sealed structure effectively prevents external dust from entering. At the same time, the isolation of external water molecules makes the whole machine with strong moisture-proof characteristics, so that the Seal series can adapt to more severe industrial environments. In addition, by introducing the self-cleaning system inside the chamber, the service life can also be greatly extended. As an upgraded version of the DPSSLP-UV-10/15-AIO, the Seal-355-10/15S series of UV solid-state lasers feature extremely short pulse widths (<10ns@90KHZ) and excellent pulse stability (<3% RMS@90KHZ) at medium to high repetition frequencies for the output laser. The repetition frequency range has been expanded (30KHZ~300KHZ) and the efficiency has been greatly improved.
